New » Arctic Cat » Z1 Turbo Sno Pro
Model Quick Search

$13,699.00

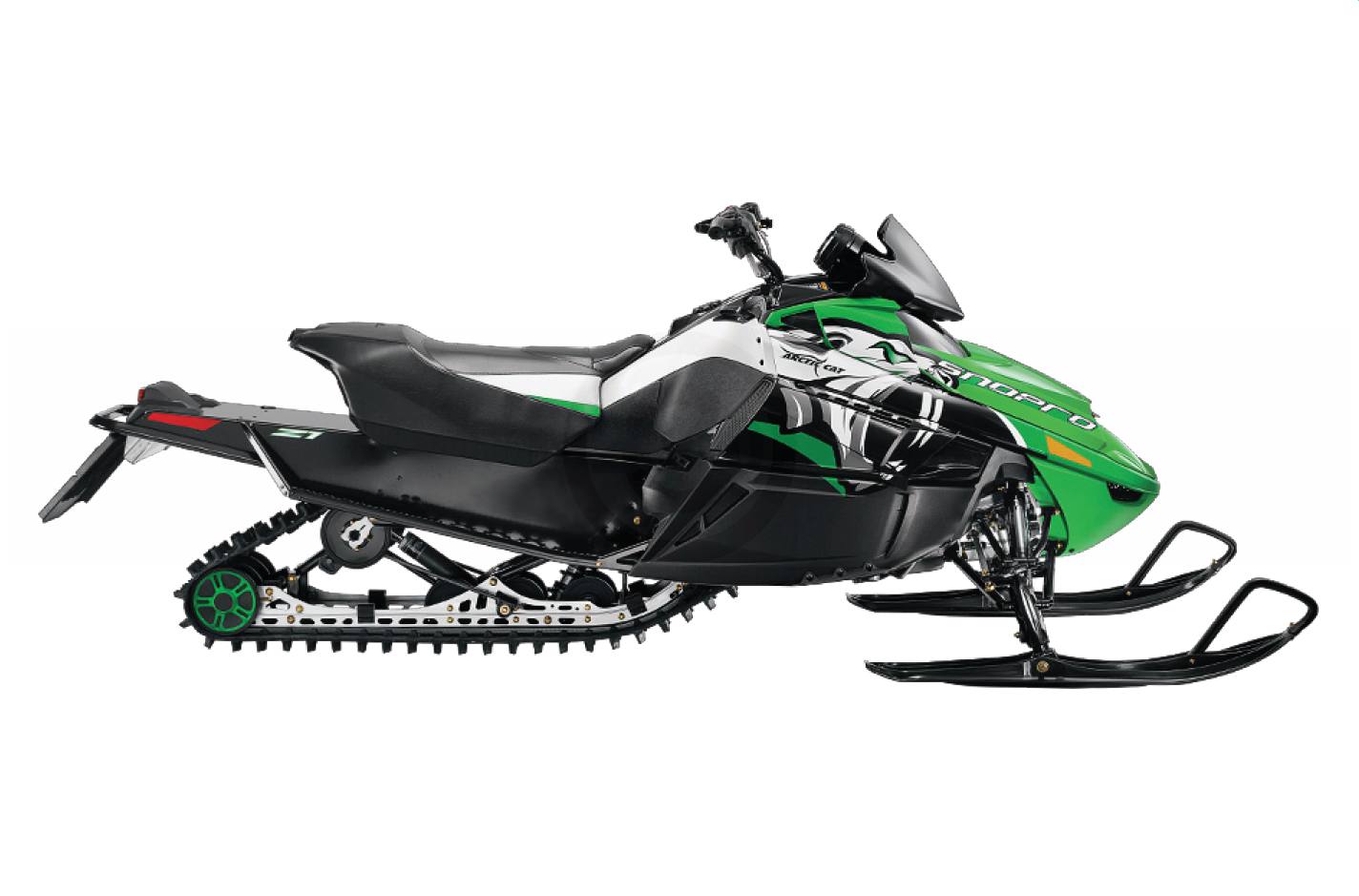

2010 Arctic Cat Z1 Turbo Sno Pro


Request a Quote Financing Calculator Request a Brochure
Click here to view full image.

Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

Those blurs whizzing past you? That's every other snowmobile in the wake of your snow dust. The Z1™ Turbo Sno Pro® has the distinction of being one of the World's Fastest Snowmobiles. Of course the key to such intense energy is the bold 4-stroke Z1 turbo engine. This snow-blasting creature tops the 177 HP benchmark with ease. FOX Float® ski shocks with quick-adjust air technology deliver great performance. The Deluxe Gauge in this monster lets you know just what kind of power and precision the Z1 Turbo Sno Pro has underneath. It features analog and digital readouts, fuel Level, an altimeter, reverse indicator and warning Lights. And for those who doubt its trail accuracy, the 128" Cobra™ track with 1.25" lugs gives you the ultimate grip when those 177 horses kick in. Just make sure to hang onto the handlebars with adjustable 5" riser when they do.


4-Stroke Z1 Turbo Engine: The 4-stroke, 1056 twin with electronic fuel injection was already perfect, but we added an inter-cooled turbocharger. The net effect is nothing short of jaw-dropping. A reliable engine that won't lose power at high elevation. So if you want the highest horsepower in the industry, this is your engine.


Twin Spar™ Chassis: Designed and manufactured to be incredibly rigid, the Twin Spar™ chassis employs two box-aluminum spars triangulated with the steering supports and tunnel spars. Self—piercing rivet construction ensures joint rigidity and long—lasting strength. The Twin Spar chassis places you in the perfect neutral riding position. With a taller seat and handlebar location, this position maximizes comfort and control in all riding conditions.


Infinite Rider Positioning™: The adjustable handlebar lets you fine your ideal riding position. Pair IRP™ with the Twin Spart™ chassis and you can fine-tune the riding position to maximize comfort and control in all riding conditions.


FOX Float® Ski Shocks - Gives you the ultimate in suspension performance. The shocks utilize FOX's quick-adjust, load-optimizing air technology and are up to 6 pounds lighter than the conventional coil-over shocks.


5" Tall Handlebar Riser - The adjustable handlebar riser is 5 inches tall on the Sno Pro® to give you the extra edge for aggressive riding.


New Twin Spar™ Rear End: Our Twin Spar™ chassis’ rear end went through a little modification. Or beautification, whichever you prefer. We’ve removed the rear plastic trunk and added a new tunnel design. We also added a new LED taillight, snowflap and rear bumper. It’s definitely one hot—looking chassis.

    Engine
    • Type: 4-stroke
    • Displacement: 1056 cc
    • Cooling: Liquid
    • Cylinders: Twin
    • Bore x Stroke: 98 x 70 mm
    • Lubrication: Dry Sump
    • Ignition: Full transistor/coil at plug
    • Carburetion: 46 mm single throttle body EFI
    • Exhaust: Turbocharger with stainless steel muffler
    • Fuel Capacity: 10.8 gal.
    Powertrain
    • Drive: Arctic (rpm sensing)
    • Driven clutch: Arctic (roller cam) ACT™ drive system
    • Brakes: Hydraulic disc
    Suspension
    • Front suspension: AWS™ VII double-wishbone A-arms with FOX Float® shocks and sway bar
    • Front travel: 9.5 in.
    • Rear suspension: Slide-action frame with coupling blocks, adjustable torsion springs and FOX® (IFP) shocks, 2? dia. rear shock
    • Rear travel: 13.5 in.
    Dimensions
    • Overall length: 118 in.
    • Overall width: 47.25 in.
    • Ski stance: 43 in.
    • Track width: 15 in.
    • Track length: 128 in.
    • Lug: 1.25 in.
    Color
    • Green
    Standard Features
    • Dual halogen (4-bulb) headlight
    • UHMW plastic saddleless ski material
    • Digital/analog tachometer
    • Digital/analog speedometer
    • Dual stage trip odometer
    • Electric gas gauge
    • Low oil light
    • Low battery light
    • Coolant overheat light
    • Clock
    • Electric start
    • Reverse
    • High/low hand warmer
    • High/low thumb warmer
    • Accessory outlet
    • Low windshield
    • Infinite Rider Positioning™
    • Deluxe Gauge
    Optional Features
    • Mirrors
    • High windshield
    • Tether switch
    • 2-up seat
    • Hitch
    • Engine heater
    • Rack
    • Sport bumper

    Specifications

    Engine
    Engine Type 4-stroke
    Displacement 1056 cc
    Cylinders Twin
    Bore x Stroke 98 x 70 mm
    Engine Cooling Liquid
    Carburetion 46 mm single throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Turbocharger with stainless steel muffler
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with FOX Float® shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and FOX® (IFP) shocks, 2? dia. rear shock
    Rear Travel 13.5 in.
    Ski Stance 43 in.
    Track Dimensions 128" x 15" x 1.25"
    General
    Speedometer Digital/Analog
    Tachometer Digital/Analog
    Odometer Dual stage trip
    Headlight Dual halogen (4 bulb)
    Fuel Capacity 10.8 gal.
    Windshield Low
    Color Green
    Options
    Electric Start Standard
    Hand & Thumb Warmers Standard
    Reverse Standard
    Mirrors Optional

    Compare Models

    Print








    Year 2010
    Manufacturer Arctic Cat
    Model Z1 Turbo Sno Pro
    Style Performance
    MSRP* $13,699.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Engine
    Engine Type 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 46 mm single throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Turbocharger with stainless steel muffler
    Alternator
    General
    Speedometer Digital/Analog
    Tachometer Digital/Analog
    Odometer Dual stage trip
    Headlight Dual halogen (4 bulb)
    Fuel Capacity 10.8 gal.
    Dry Weight
    Windshield Low
    Color Green
    Warranty
    Options
    Electric Start Standard
    Hand & Thumb Warmers Standard
    Reverse Standard
    Mirrors Optional
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with FOX Float® shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and FOX® (IFP) shocks, 2? dia. rear shock
    Rear Travel 13.5 in.
    Ski Type
    Ski Stance 43 in.
    Track Type
    Track Dimensions 128" x 15" x 1.25"
